Control Type: Hydraulic Automatic Wire Saw Type: Diamond Wire Saw

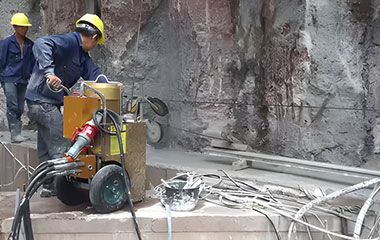

Yugong's main business is mine wire saw machine and hydraulic concrete wire saw machine. High precision wire saw cutting machine marble diamond wire saw machine for stone cutting is used to cut concrete and rock walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks. Generally used in static cutting and dismantling of bridges, bridge piers, dock platforms, and underwater concrete piles to ensure that the original structure is not damaged.
Hydraulic Diamond Wire Saw Machine is used to cut concrete and rock walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.If you are interested, please let us know which type of wire saw used you need. We will offer you the best Diamond Wire Saw Machine and a very competitive price.
| Wire saw frame | Hydraulic pump station | Diamond wire | |||
| Wire driving mode | hydraulic | Rated output power | 25kw | Diameter | 11.5mm |
| Cutting speed | 3-5m2/h | Working voltage | 380v 50HZ | Beads amount | 40pcs/m |
| Max wire storage | 18m | Pump station type | gear pump | Wire length | 50m/roll |
| Wheels quantity | 7pcs | Working speed | 1300r/min | Wire consumption | 2-3m2/m |
| Feeding method | automatic hydraulic | Max pressure | 28 Mpa | ||
| Weight | 110kg | Max rotated speed | 3000RPM | ||
| Dimension | 900*700*1350mm | Oil tank volume | 17L | ||
| Weight | 195KG | ||||
| Dimension | 700*700*1200mm | ||||
| Hydraulic oil model | 46#/48# | ||||
High precision
The cutting precision of wire cutting is very high, which can reach the accuracy of 0.1 mm, which is suitable for the processing of stone shape and size with high requirements.Wide applicability
Wire cutting can be applied to any shape of stone, including large stones, small slabs, and a variety of complex curve shapes.Harmless by-products
No harmful by-products are used in the wire cutting process, which is pollution-free to the environment.
Wall Saw Cutting Machine
Mono Wire Saw Machine
Good Feedback
