Matching excavator: 20tons-35tons Crushing bucket capacity: 0.8m³

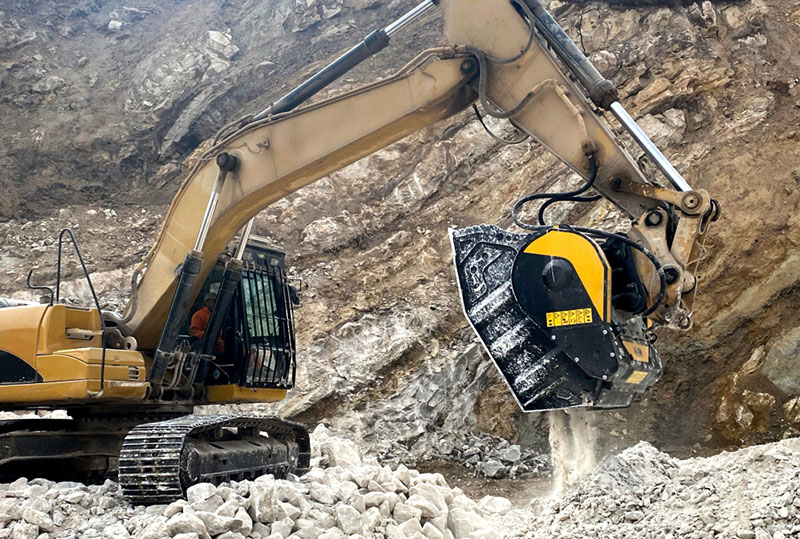

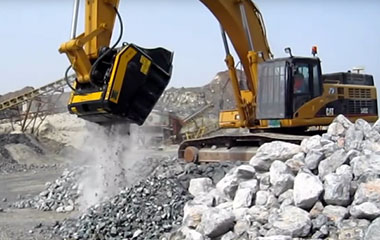

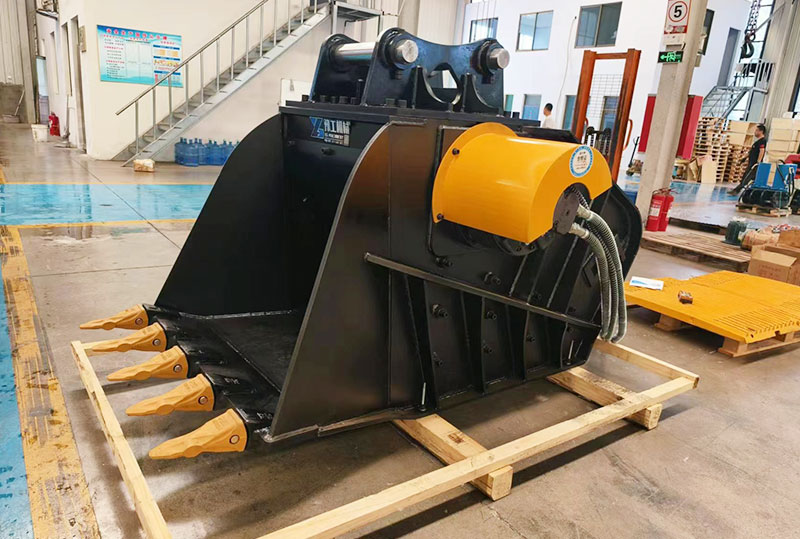

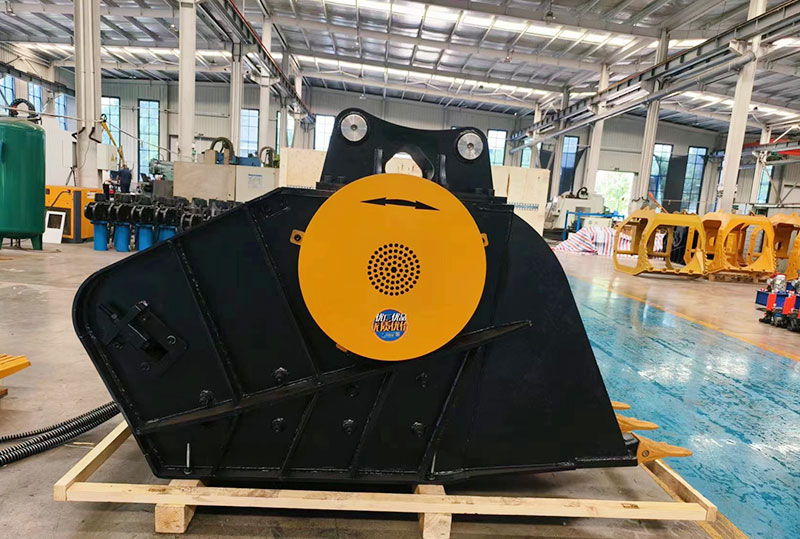

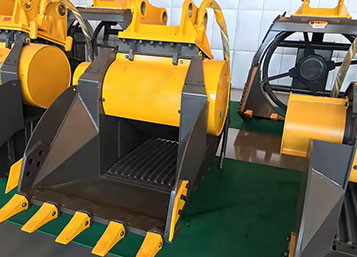

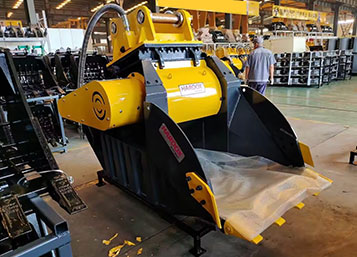

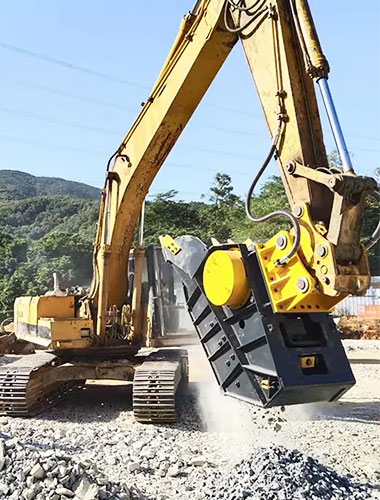

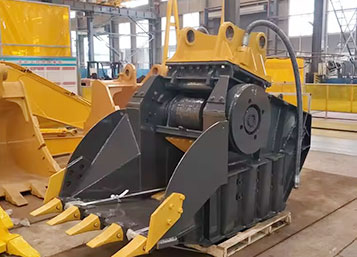

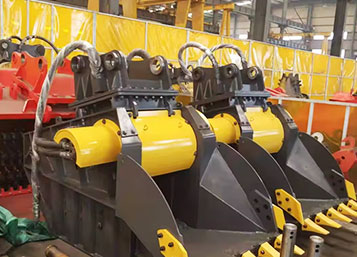

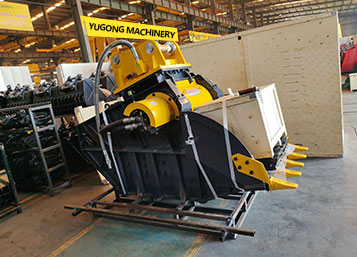

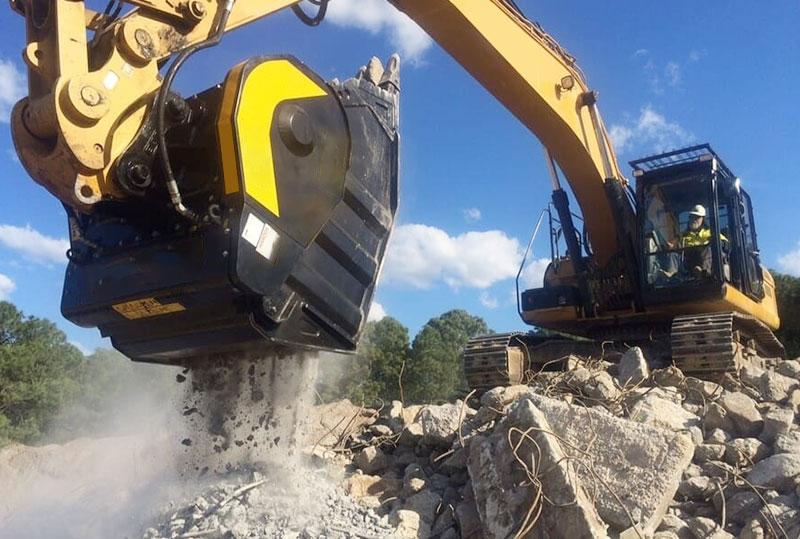

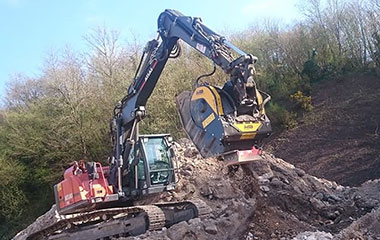

Our crusher bucket way of working consists on a bucket with two crushing jaws inside,one of them is fixed and the other one is driven by motor directly and moves back and forth relative to it, has a unique, aggressive figure-eight crushing motion that produces high quality cubical product,enabling the aggregate to be reused on site.
By reversing the rotation, clogged materials can be easily released. The upper and lower jaw plates can be exchanged with each other, and the rear and front sections can be exchanged. We are using direct drive system which makes maintenance much easier. The reinforcing bars can be easily removed from crushed reinforcement.
| Model | YGBC155 | YGBC225 | YGBC300 |
| Excavator(T) | 13-18 | 19-30 | 31-39 |
| Weight(kg) | 2250 | 3300 | 3800 |
| Load Volume(cbm) | 0.58 | 0.7 | 0.85 |
| Pressure(bar) | 200 | 200 | 200 |
| Oil Flow(L/MIN) | 130 | 150 | 180 |
| Inlet Size(mm) | 600*500 | 740*500 | 900*550 |
| Outlet Size(mm) | 15/120 | 15/120 | 15/120 |
Good Feedback
