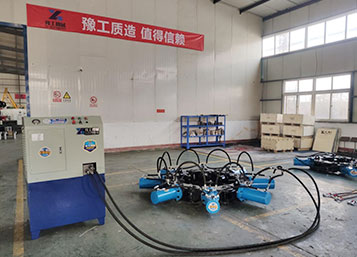

Hydraulic Pile Breaker

Hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directly drive the chisels and squeeze the pile body at the same time to break the pile.It operates easily and has high effiency, low noise, low cost in the pile cutting construction process, which is suitable for pile group in construction engineering.Hydraulic pile breaker machine adopts highly modular combinations and connect modules through axis pins. It can break piles in certain ranges of diameter by different number of modules combination.

Product Introduction

banner

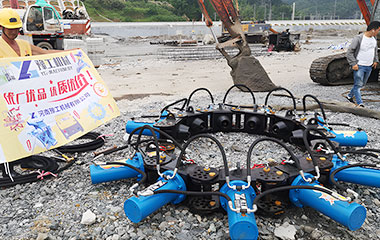

Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round,square and stainless steel series pile breaker by the different pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering.  Normally hydraulic round pile breaker can break pile diameter from 200-2500mm which can meet the requirements of all kinds of large-scale infrastructure construction.

Get A Free Quote


Technical Parameters

Modules Pile Diameter Range Applicable to Excavator Max Cylinder Trip Pressure
mm Ton 300mm 30MPa
4 400-600

20-30T


 Chisel Diameter Max Hoist Capacity
8 600-800 Chisel Diameter Max Hoist Capacity
9 800-1000 Chisel Diameter Max Hoist Capacity
10 1000-1500


30-40T


 110mm ≤500mm
11 1150-1300 110mm ≤500mm
12 1300-1500 Single Module Weight Single Module Size
13 1500-1650 Single Module Weight Single Module Size
15 1460-1970

Hydraulic system /

Pump station


332KG 1015*865*340mm
17 2200-2360 φ35
18 2360-2500 φ35


  • Round-Pile-Breaker

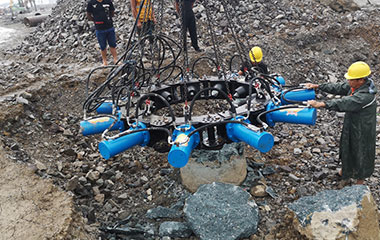

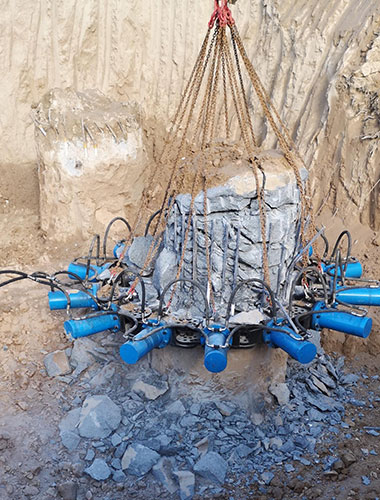

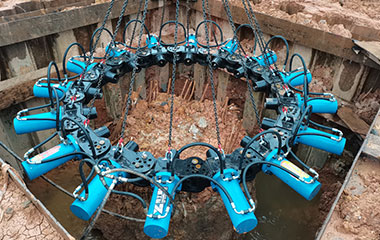

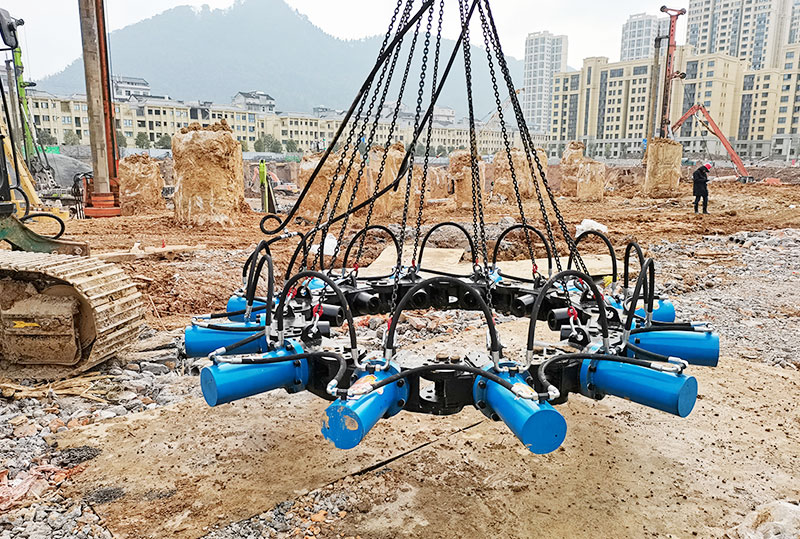

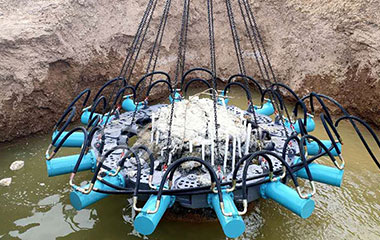

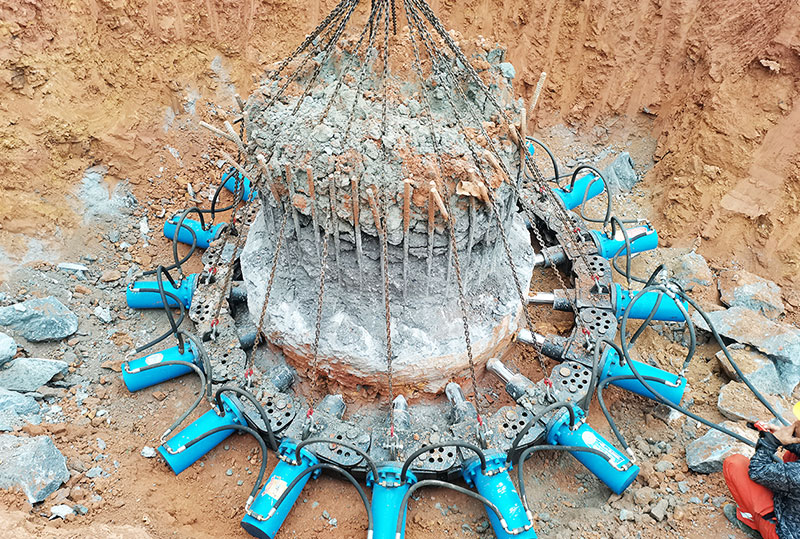

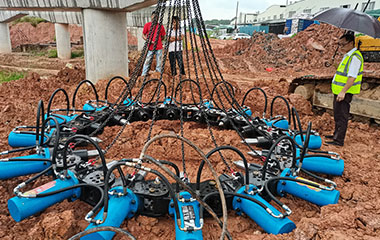

    Round Pile Breaker

    Purpose: Break round pile heads

    Pile diameter: 250mm-2500mm

    Free Quote

  • Square-Pile-Breaker

    Square Pile Breaker

    Purpose: Break square pile heads

    Pile side length: 250mm-650mm

    Free Quote


Drive Mode

  • lj1

    Excavator

    The excavator provides both power and lifting force.

  • lj2

    Hydraulic system + crane

    The hydraulic system provides power, and the crane provides lifting force.

  • lj3

    Hydraulic system + loader

    The hydraulic system provides power, and the loader provides lifting force.

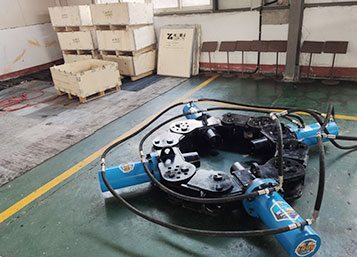

Product Details

1Module design: The modular design can be connected to a variety of engineering machinery, and can adapt to piles of different diameters by increasing or decreasing the number of modules, with high versatility and flexibility.
2Conical top: Its conical top design can prevent soil from accumulating in the guide flange, preventing problems such as steel drill jamming, deflection and easy breakage.

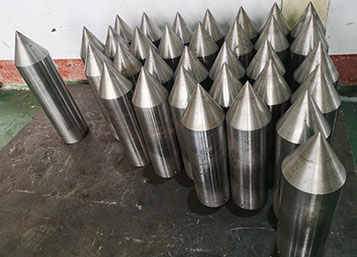

3Steel drill rod: The steel drill rod that rotates at any time effectively prevents the internal vibration of the high-pressure oil cylinder and prevents the connection from breaking, and has good anti-seismic effect.

Product-Details

Product Advantages

1 Environmental ProtectionThe full hydraulic drive realizes low-noise operation of pile head construction, and does not affect the surrounding environment during construction; static hydraulic radial construction has no effect on the mother pile and equipment.
2Multifunctional The round pile machine and the square pile machine have universal modules. The combination of modules can be changed to break both round and square piles, and one machine can be used for two purposes.
3Low Cost The operating system is simple and convenient, with less staffing, which reduces labor costs, machine maintenance and other construction costs.
4Convenience Small size, light weight, and convenient transportation; simple module replacement design, by changing the number of modules, to meet the construction of different pile diameters, the module is easy to disassemble and assemble when reorganized.

Advantages

Related Products
Good Feedback

Yugong Machinery Introduction

Yugong Machinery has an extensive product line with equipment for excavators and wheeled loaders. Throughout the years, we have significantly expanded our product range and have grown to become a full service supplier for the demolition and recycling market. Our product range is not only broad, we are also constantly further developing our products.

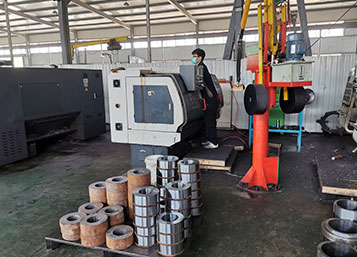

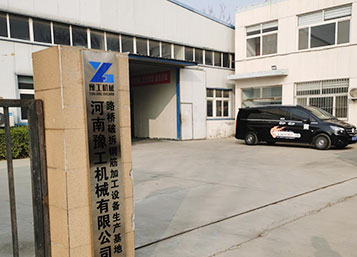

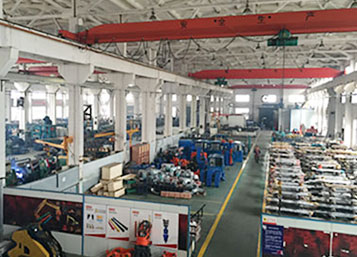

  • Our Factory

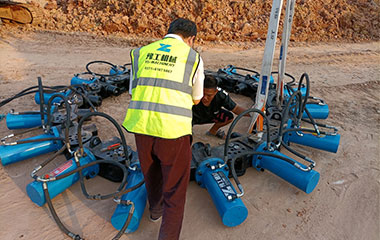

  • Customer Visit
