Tank Volume: 2-8m³ Spraying Area Of Single Tank:600-1400㎡

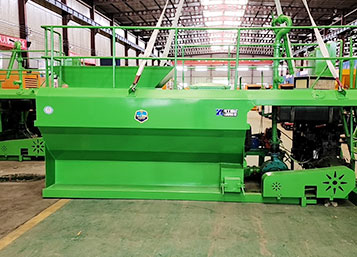

Hydroseeding Machine also called spray seeding machine, lawn grass seeds spraying machine and hydroseeder, whch is used for highway, railway slope greening, mine greening, large hydropower station, planting grass and afforestation in barren mountains and deserts, dust-proof greening, golf course and other leisure and entertainment places, which need large-scale grass planting, afforestation, greening and maintenance projects.
| Model | YG-JKP88 | YG-JKP146 | YG-JKP247 |
| Tank Capacity（m³） | 6 | 8 | 8 |
| Flow (m3/h ) | 50 | 70 | 70 |
| Power kW /hp | 88KW/120hp | 146KW/199hp | 247KW/336hp |
| Rotating Speed(rpm) | 2200 | 2200 | 2200 |
| Horizontal Direct Range(m) | 30-40 | 40-50 | 200bar/20Mpa |
| Horizontal Conveying (m) | 100-160 | 150-200 | 180-280 |
| Lead Pipe Vertical Lift(m) | 30-70 | 50-100 | 80-140 |
| Fence Platform | yes | yes | yes |
| Weight(kg) | 4300 | 4800 | 5400 |
| Size:mm | 4880×2200×2500 | 5600×2200×2500 | 6100×2200×2500 |
| Single Tank Spraying Area:㎡ | 240-160 | 320-210 | 320-210 |
It is suitable for stone slopes, wire mesh slopes, high slopes, and slopes with large spraying thickness. It has high efficiency and is suitable for large-scale construction. The lift is 20-40 meters. It is the preferred product for long-term greening. It can be suitable for various slopes, and the lead pipe lift can reach 100 meters.
High Greening Efficiency and Fast Construction Speed
It can complete large-scale spraying operations in a short time. For example, an ordinary spraying machine can spray 10,000 to 20,000 square meters a day, which greatly improves the efficiency of greening construction and shortens the project cycle.Continuous Operation
The equipment operates stably and can continue to spray. It does not require frequent rest and adjustment like manual sowing, which ensures the continuity of construction.Uniform Seed Distribution
Through mechanical spraying, grass seeds, fertilizers, water retaining agents and other mixed materials can be evenly sprayed on the slope to ensure the uniformity and consistency of vegetation growth, avoiding the uneven density that may occur in manual sowing.Strong Adhesion
The sprayed mixed materials can be closely combined with the slope to form a stable vegetation growth matrix, which is conducive to seed germination and growth. For some steep slopes, the sprayer can add appropriate amounts of grass fiber, rice husks, sawdust and other materials to increase the adhesion of mud and improve the survival rate of vegetation.Fast Vegetation Growth
The sprayed materials are rich in nutrients and moisture, which provides good conditions for the growth of vegetation and can promote the rapid growth and development of vegetation. Generally, obvious greening effects can be seen in a short time after spraying.Strong Terrain Adaptability
Whether it is road slope, railway slope, mine slope, river slope protection, hydropower slope, wind power slope and other areas with complex terrain and geological conditions, the sprayer can carry out effective greening operations.
Good Feedback
