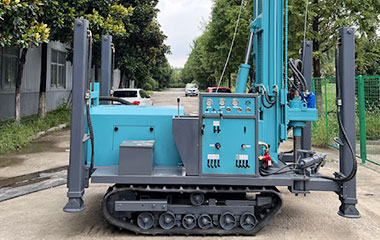

Water Well Drilling Rig

YUGONG series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata. Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump.

Product Introduction

The YUGONG series water well drilling rig is a lightweight, efficient and multi-functional drilling equipment powered by a diesel engine. It is mainly suitable for drilling water wells, agricultural irrigation wells and other wells, especially in mountainous areas and rock formations. water intake project. All drilling rigs must be used with mud pumps or air compressors.

water-well-drilling-rig

Technical Parameters

ModelYG180YG200YG300YG400YG600
Depth180meter200meter300meter400meter600meter
Hole diameter140-254mm140-305mm140-325mm140-350mm140-350mm
Power55KW65KW85KW92KW115KW
Weight4500kg5800kg7000kg10000kg12000kg
Get A Free Quote

Product Details

01

Water Well Drilling Rig + Mud Pump

The water well drilling rig mud pump draws mud from the ground or sump through a mechanical structure, compresses it and injects it into the drilling well. During operation, a high pressure difference is generated through compressor or plunger drive to send mud into the drilling pipe.

Note: Applicable to soil layers, general sand layers and loose strata with small pebble diameters.

02

Water Well Drilling Rig + Air Compressor

During the drilling process, water well drilling rigs need to use high-pressure air to discharge mud, cuttings and other materials generated at the bottom of the borehole from the wellhead. It greatly improves drilling efficiency while reducing workers' labor intensity.

Note: The geological conditions have a lot of surface soil, sand, and pebbles, so an air compressor.

03

Water Well Drilling Rig Accessories

YG180 is equipped with 76 drill pipe, YG200\YG300 is equipped with 89 drill pipe, and YG300 or above is equipped with 102 drill pipe. The impactor + joint + steel wire pipe can be configured according to the actual needs of the customer.

Accessories


Application

This water drilling rig is mainly used for irrigation well drilling, home water well drilling, geothermal good drilling, hydrology wells drilling, civil use water well drilling, industry well drilling, etc drilling projects. it can drill hard rock ,clay ,soil ,sandy etc different stratume.

ApplicationApplication1

Get A Free Quote
Related Products
Good Feedback

Yugong Machinery Introduction

Henan YG Machinery Co., Ltd is a professional manufacture of drilling rigs. In the 18 years development, YG has been insisting on providing customers with first-class quality, first-class reputation, and first-class service to customers. With high quality products, we have won the trust of customers from 100+ countries. We’ll continue devoting to make products with higher quality.
  • Our Factory
  • Customer Visit
  • Certificates of Honor

Leave a Message for Inquiry

Not found satisfied Water Well Drilling Rig? Leave us a message, we will recommend a suitable one for you!
