Pumping Capacity: 30-60m³/h Aggregate Size: 0-5cm
Whether it is vertical climbing of high-rise buildings or long-distance horizontal transportation, it can easily cope with it. It can easily cross the building height of 150m and the horizontal transportation distance can reach up to 500m, ensuring that concrete is accurately delivered to every corner of the construction. In projects such as large bridge construction and large building foundation construction, it promotes the progress of the project at an astonishing speed, allowing your project to be completed ahead of schedule and seize the market opportunity.

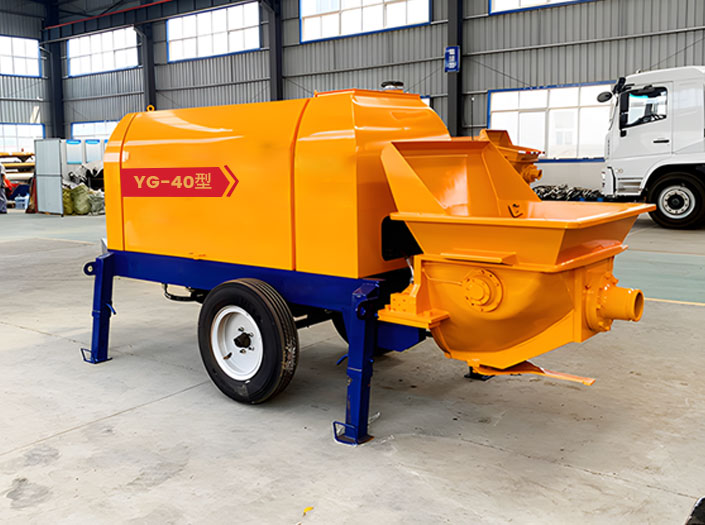

| Model | YG-30 | YG-40 | YG-50 | YG-60 |
| Motor Power | 37kw | 45kw | 55kw | 90kw |
| Work Efficiency | 13-15m³/h | 20-25m³/h | 30-35m³/h | 55-60m³/h |
| Work Pressure | 20mpa | 23mpa | 23mpa | 23mpa |
| Aggregate Size | 0-3cm | 0-4cm | 0-4cm | 0-5cm |
| Vertical Conveying Distance | 20-60m | 30-130m | 30-150m | 30-150m |
| Horizontal Conveying Distance | 50-150m | 50-350m | 50-500m | 50-500m |
| Delivery Pipe Diameter | 80-125mm | 80-125mm | 80-125mm | 125mm |
| Total Weight | 1500-2000kg | 2200kg | 2200kg | 3500kg |
Large Capacity Hopper
lncreased capacity, large space, sufficient material discharge, not easy to block.Diesel Engines
Fast speed, high efficiency and strong power.Enlarge The Discharge Port
lmproved the discharging speed and solved the problem of blockage dueto large stone particles.Cooling Fan
High-intensity cooling fan, long-lasting heat dissipation to protect the motor.
We provide you with all accessories for the concrete conveying equipment produced by the company, with complete models, reliable performance, stability and durability.

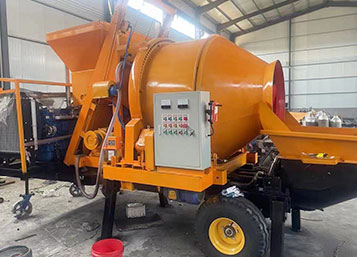

Concrete mixer machine with pump
Cement Concrete Mixture Machine
Good Feedback
